| Mini Tog Switch Commercial 3Amp 250 V AC M6 |
| Code No |
Rating |
Operation |
Function |
Terminal |
TerminalType |
Color |
| CE 101 |
3 Amp |
SPDT |
ON-NONE-ON |
3 |
Solder / PCB |
Black |
| CE 201 |
DPDT |
ON-NONE-ON |
6 |
|
|
|
|
|
|
|
|
|
| Mini Tog Switch Proffesional 3Amp 250 V AC M6 |
| Code No |
Rating |
Operation |
Function |
Terminal |
TerminalType |
Color |
| P 101 |
3 Amp |
SPDT |
ON-NONE-ON |
3 |
Solder / PCB/ Right Angle Horizontal PCB/ Right Angle Vertical PCB |
Blue |
| P 103 |
SPDT |
ON-OFF-ON |
3 |
| P 105 |
SPDT |
(ON)-OFF-(ON) |
3 |
| P 107 |
SPDT |
(ON)-OFF-ON |
3 |
| P 108 |
SPDT |
(ON)-NONE-ON |
3 |
|
|
|
|
|
|
|
| P 201 |
3 Amp |
DPDT |
ON-NONE-ON |
6 |
Solder / PCB/ Right Angle Horizontal PCB/ Right Angle Vertical PCB |
Blue |
| P 203 |
DPDT |
ON-OFF-ON |
6 |
| P 205 |
DPDT |
(ON)-OFF-(ON) |
6 |
| P 207 |
DPDT |
(ON)-OFF-ON |
6 |
| P 208 |
DPDT |
(ON)-NONE-ON |
6 |
|

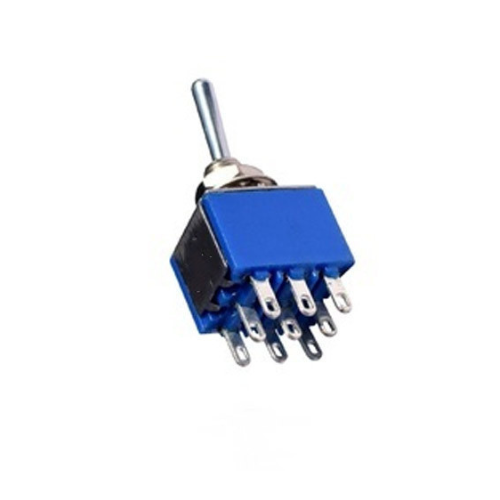

| P 301 |
3 Amp |
TPDT |
ON-NONE-ON |
9 |
Solder / PCB |
Blue |
| P 303 |
TPDT |
ON-OFF-ON |
9 |
| P 305 |
TPDT |
(ON)-OFF-(ON) |
9 |
| P 307 |
TPDT |
(ON)-OFF-ON |
9 |
| P 308 |
TPDT |
(ON)-NONE-ON |
9 |
