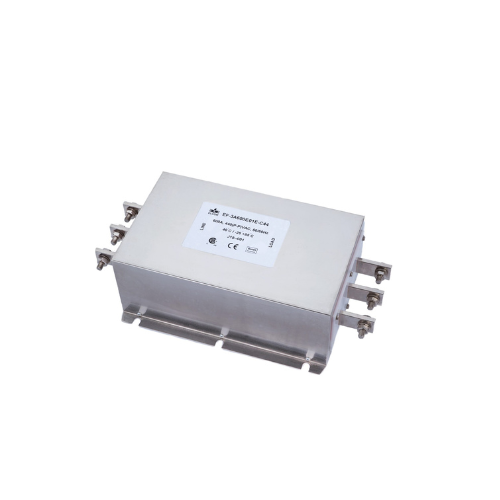

Elcom Chassis Mounting – Three Phase three wire

Description

Sr. No.	Parameters	Specification
1	Product category / description	RFI/EMI Filter
2	Mounting	Chassis mounting
3	Filter category	Three phase without neutral & three phase without neutral with surge suppressor

Sr. No.	Parameters	Specification
1	V/A rating	500 Amp, 550 Amp & 600 Amp, 440VAC (P-P) 50/60Hz
2	Insulation resistance at 500 VDC for 60 sec ± 5 sec. (by shorting L & N terminals & w.r.t. earth)	Min. 300MΩ
3	H.V.break down test for 60 sec ± 5 sec. (by shorting L & N terminals & w.r.t. earth)	1.5 KVAC
4	MTBF@40°c/230V(Mil-HB-217F)	200,000 hours

Sr. No.	Parameters	Specification
1	Operating temp. range	40°c/-25° +85°c
2	Input terminals (standard)	Busbar terminals
3	Output terminals (standard)	Busbar terminals
4	Size	(L-470 x W-250 x H-135) in mm.
5	Material	CRCA 1.2 mm thickness
6	Body	In fabricated CRCA metal can with nickel plating
7	Current carrying parts	Cu alloy, tin/nickel plating
