Description
Used widely in Desktop Computers Instrument Amplifiers Monitors Printers Professional Audio Equipment and other peripherals.
Features:

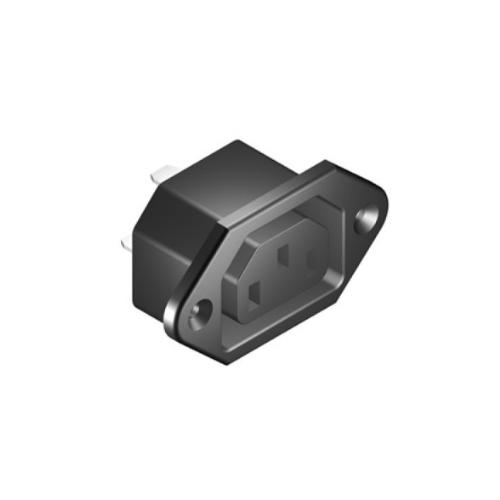

Functions: Appliance Inlet Protection Class II
Panel Mount: Screw-on mounting from front
Technical Specifications:
| H.V Breakdown test | >2 KV AC for 1 Min. |
| Current Rating | 10 A 250 V AC |
| Contact Resistance | < 10 m Ohms |
| Insulation Resistance | > 1000 M Ohms |
| Ambient Temperature | 25 ° C to + 70 ° C |
| Housing Material | Thermoplastic, black, UL 94V-0 |
| Terminals | Brass quick connect terminals |
| Terminal Finish | Silver |
| Mounting | Panel Mounting |
| Color | Black |
| Panel Thickness | 6mm max |
