Description

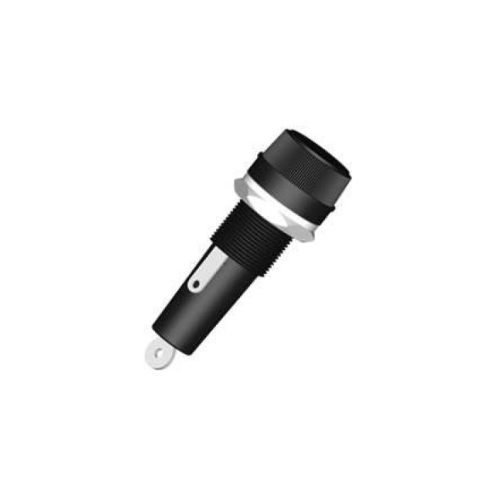

Fuse Holder Cartridge Sleek 10A is used mainly in application in general industrial equipment and home appliances.
Technical Specifications:
| Insulation Resistance (Ohm) | >1000 MW |
| Contact Finish | Silver Plated |
| Housing Material | Phenolic, G.F.Polyamide |
| Terminals | Brass , Copper |
| Permissible Soldering Time/Temp. (Sec./°C | Soldering Time < 5 Sec. At 270°C |
| Ambient Temperature (°C) | -25 ° C to + 80 ° C |
| H.V Breakdown test(W) | 2 KV AC for 1 Min |
| Mounting Types | Panel Mounting Chassis Mounting PCB Mounting |
| Fuse Link Size (mm) | 5 X 20 6.3 X 32 |
| Panel Thickness Max (mm) | 3 |
| Contact Resistance (W) | < 10 mW |
| Current Rating | 6 A 250 V AC 7 A 250 V AC 10 A 250 V AC 15 A 250 V AC |
