Description

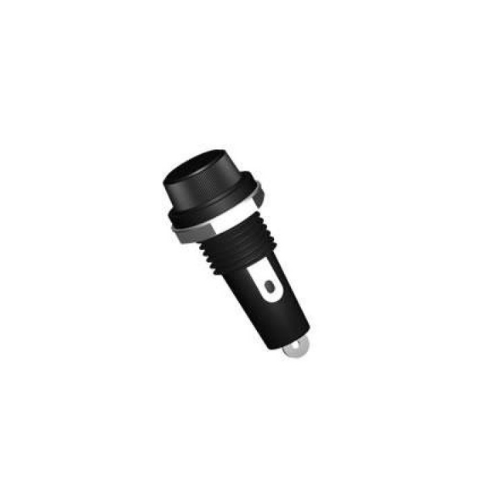

Fuse Holder Cartridge Large Bakelite is used mainly in application in general industrial equipment and home appliances.
Technical Specifications:
| H.V Breakdown test(W) | 2 KV AC for 1 Min |
| Current Rating | 15A 250 V AC |
| Contact Resistance (W) | < 10 mW |
| Insulation Resistance (Ohm) | >1000 Mohms |
| Ambient Temperature (°C) | -25 ° C to + 80 ° C |
| Permissible Soldering Time/Temp. (Sec./°C | Soldering Time < 5 Sec. At 270°C |
| Housing Material | Phenolic |
| Terminals Material | Brass Copper |
| Terminals Finish | Silver Plated |
| Mounting Types | Panel Mounting |
| Contact Finish | Silver Plated |
| Fuse Link Size (mm) | 32 X 6.3 mm |
| Panel Thickness Max (mm) | 6.0 |
