Description

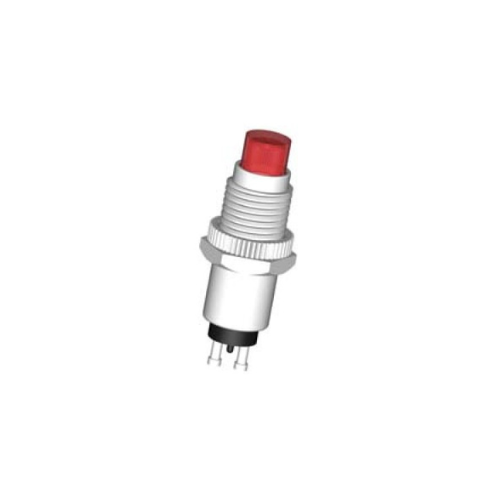

LED Indicator Metal Compact main features are:
- Incorporates LEDs for Long Life
- Available for AC Voltage and DC Voltage
- Low Power Consumption
- Bright Illumination
Technical Specifications:
| H.V Breakdown test | 2 KV for 1 Minute |
| Current | 10-15 mAmps. |
| Voltage-AC | 230 V |
| Voltage-DC | 12V, 24V |
| Voltage Variation | 20 % of operating Voltage |
| Insulation Resistance | > 500m ohm |
| Ambient Temperature | -25 °C to + 80 °C |
| Housing Material | Brass |
| Lens Material | PC |
| Mounting | Panel |
| Termination | Solder |
| Housing Colour Available | Chrome |
| Lens Colour Available | Red , Green , Amber , Blue |
