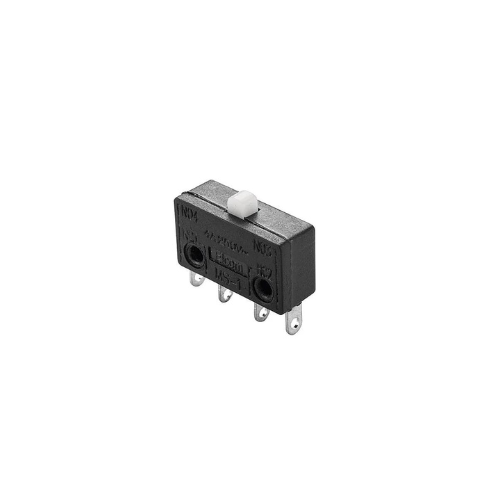

Description
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Type | Micro switch, Momentry |
| 2 | V/A Rating | 4A, 250V AC |
| 3 | Contact Resistance (Initial) | 20m Ohms. Max |
| 4 | Insulation Resistance At 500 V DC | 100M Ohms Min. |
| 5 | H.V.Break Down Test (For 1-Minute) | 1KV AC |
| 6 | Mounting | Chassis With Screw/PCB type for MS-1, MS-1C, MS-1R |
| 7 | Mounting | Panel With Screw for MPU, MPS, PMS |
| 8 | Terminals | Solder-type |
| 9 | Electrical Life | 10,000 Cycles Min |
| 10 | Mechanical Life | 50,000 Cycles Min |
| 11 | Relative humidity (%) | 91 to 95% RH |
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | With/Without Load | -25°C to +85°C |
| 2 | For Soldering | 270°C/5 Sec Max. |
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Switch body | PBT, GF |
| 2 | Basic actuator | Delrin (White) |
| 3 | Terminals | Brass, Tin Plating |
| 4 | Contacts | Copper,Silver Plated |
| 5 | Bracket | CRCA, Nickel plating for MS-1L |
| 6 | Bracket | Nylon, GF for MPU, MPS, PMS |
| 7 | Extended actuator | CRCA, Nickel plating for MS-1L |
| 8 | Extended actuator | ABS for MPU, MPS, PMS |
