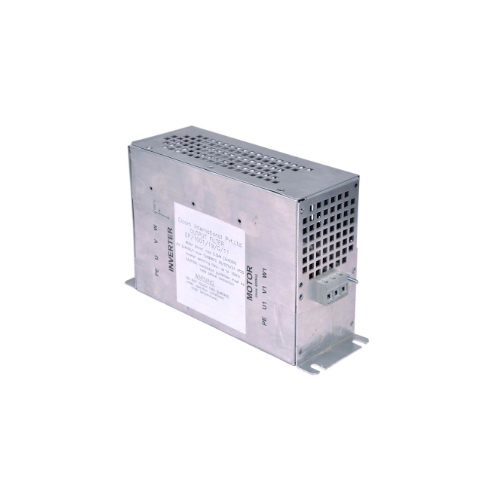

Elcom Output Filter

Description

Sr. No.	Parameters	Specification
1	Product category / description	Output filter
2	Mounting	Chassis mounting
3	Filter category	Three phase without neutral

Sr. No.	Parameters	Specification
1	V/A rating	12 Amp, 440VAC (P-P)
2	Insulation resistance at 500 VDC for 60 sec ± 5 sec. (by shorting L & N terminals & w.r.t. earth)	Min. 300MΩ
3	H.V.break down test for 60 sec ± 5 sec. (by shorting L & N terminals & w.r.t. earth)	1.5 KVAC

Sr. No.	Parameters	Specification
1	Operating temp. range	40°c/-25° +85°c
2	Input terminals (standard)	Touch safe terminals
3	Output terminals (standard)	Touch safe terminals
4	Size	(L-350 x W-110 x H-190) in mm.
5	Material	CRCA 2.0 mm thickness
6	Body	In fabricated CRCA metal can with nickel plating
7	Current carrying parts	Cu alloy, tin/nickel plating
