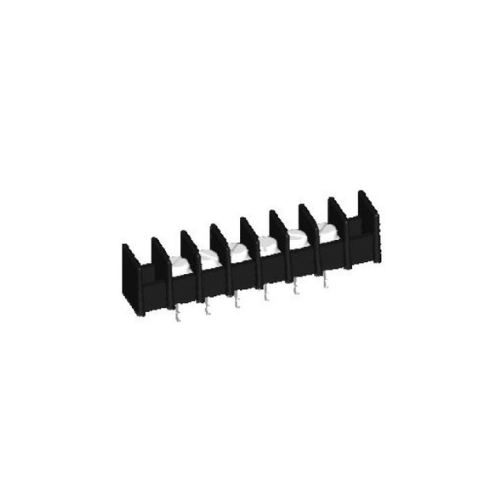

Description
| Mounting Arrangement | Chassis Mounting |
| Rating | 20 Amp, 300 V AC |
| Contact Resistance | < 10 m Ohms |
| Insulation Resistance | > 1000 M Ohms Min. |
| H.V.Break Down Test for 1 Min. | > 1.5 KV AC |
| Contact Material | Brass, Silver Plated |
| Insulation Material | Polyamide G.F. |
| Screw | Nickel Plated with washer |
| Colour | Black |
| Temperature Range | -40° to +105° C |
| Recommended PCB Hole Dia | 1.8 mm to 2.0 mm |
| Wire Range | 22- 12 AWG |
| Pitch | 9.5 mm |
Note: Also available in range from 1 way to 16 way (with or without mounting holes)
