Description

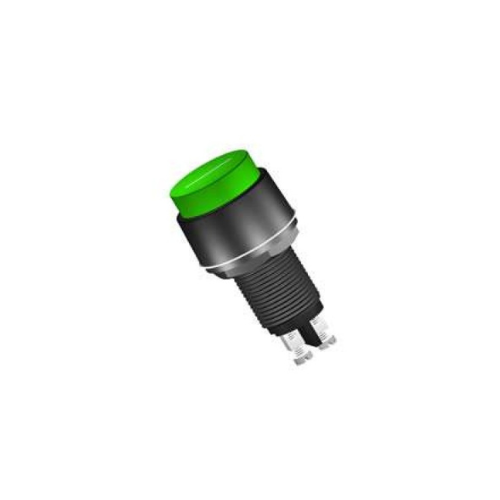

Push To On Medium is used in applications like application in general industrial equipment and home appliances.
Push To On Medium main features are:
-
-
High number of Operations
-
Technical Specifications:
| H.V Breakdown test | 1 KV AC For 1 Minute |
| Contact Rating | 5 A 250 V AC |
| Contact Resistance | < 10 m ohms |
| Mechanical Life (No. Of Operations) | 50,000 Operations |
| Electrical Life (No. Of Operations) | 10,000 Operations |
| Ambient Temperature | -25 ° C to +80 ° C |
| Mounting Arrangement | Chassis Mounting |
| Housing Colors Available | Black |
| Button Colors Available | Red , Green |
| Housing Material | Phenolic |
| Push Button Material | Phenolic |
| Terminals Material | Brass Nickel Plated |
| Terminal Type | Screw Fasten |
| Contact Material | Phos. Bronze |
| Contact Arrangement | Momentary Push to ON |
