Description
| Sr. No. | Parameters | Specification |
|---|---|---|

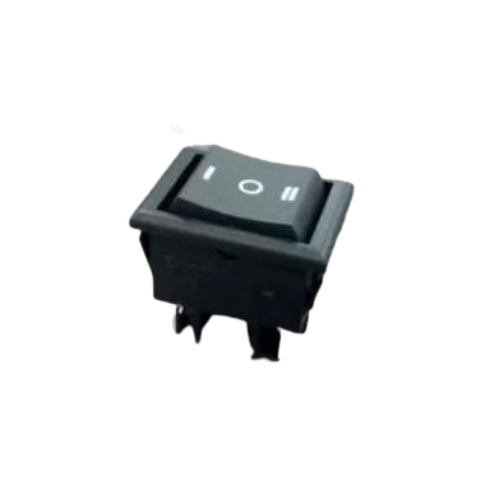

| 1 | Type | Rocker switch, DPDT(Center off) |
| 2 | Panel Thickness | 3.0 Max. |
| 3 | V/A Rating for RS-62 CF | 6A,250VAC |
| 4 | V/A Rating for RS-162 CF | 16A,250VAC |
| 5 | Contact Resistance(Initial) | 10 mOhms. Max |
| 6 | Insulation Resistance at 500 V DC | 100 MOhms Min |
| 7 | H.V.Break Down Test(For 1-Minute) | 1.5 KV AC |
| 8 | Mounting | Panel, Snap-in. |
| 9 | Terminals | Soldering/Fast on, 6.30 x 0.80 |
| 10 | Electrical Life | 10,000 Cycles Min. |
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | With/Without Load | -25°C to +75°C |
| 2 | For Soldering | 270°C for 5 Sec Max. |
