Description
| Sr. No. | Parameters | Specification |
|---|---|---|

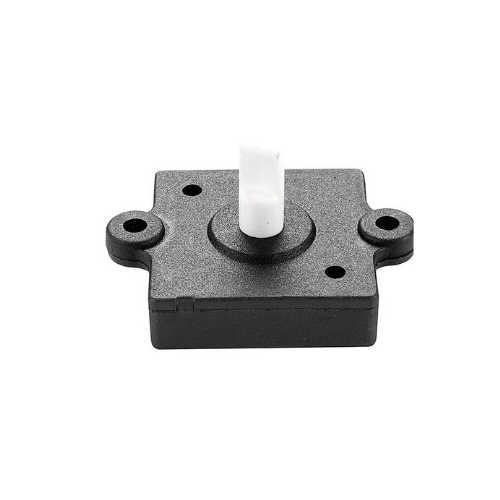

| 1 | Product Category / Description | Rotary Switch |
| 2 | Mounting Style | Chassis Mounting |
| 3 | Sub Type | Function Switch |
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | V/A Rating | 4A 250VAC / 125 VAC |
| 2 | Insulation Resistance at 500 VDC | 1000 M ohms Min. |
| 3 | H.V.Break Down Test (For 1-Minute) | 1 KVAC |
| 4 | Contact Resistance (Initial) | 20 m ohms Max |
| 5 | Electrical Life | 10,000 Cycles / Pole |
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Operating Temp. Range | -20°C to +85°C |
| 2 | Mounting | Screw Mounting |
| 3 | Terminals (Standard) | Push In Type – Solder less |
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Body | Nylon |
| 2 | RoHS compliant | No (Variety Available Through another code) |
| 3 | Colour (Standard) | Black |
| 4 | Current Carrying Parts | Cu Alloy, Nickel Plating |
| 5 | Shaft Colour | White |
