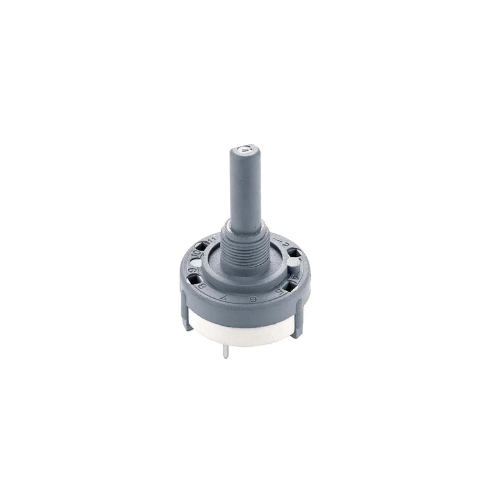

Description
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Type | Binary coded Rotary switch,22.5 indexing |
| 2 | V/A Rating | 150mA, 50V AC/DC |
| 3 | Non Switching current rating | 500 mA |
| 4 | Non Switching current rating | 3mm max. |
| 5 | Contact Resistance(Initial) | 50 m Ohms. Max |
| 6 | Insulation Resistance at 500 V DC | 25000 M Ohms |
| 7 | H.V.Break Down Test(For 1-Minute) | 250V |
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Mounting | Panel With Nut |
| 2 | Terminals | Solder-type |
| 3 | Breaking Torque | 7kg-cm Mi |
| 4 | Electrical Life | 10,000 Cycles min. |
| 5 | Permissible Temp.With/Without Load | -25°C TO +85°C |
| 6 | Permissible Temp For Soldering | 270°C for 5 Sec. Max. |
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | Plastic parts | Glass filled Nylon, PBT |
| 2 | Terminals/ contacts | Copper alloy, Silver plated |
| 3 | PCB | Glass epoxy, Gold plated |
