Description

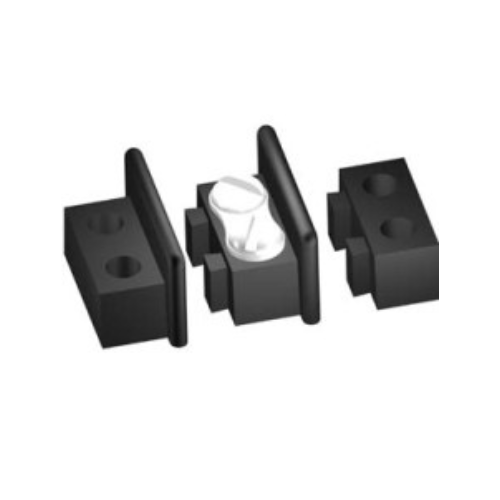

SE486 Terminal Block Stackable Standard Type 10A 1 Way has flexibility of adding terminations with “snap” together modules to provide permanent configurations.
SE486 Terminal Block Stackable Standard Type 10A 1 Way is used mainly in applications like PCB Mounting Stackable Terminal for Industrial use.
SE486 Terminal Block Stackable Standard Type 10A 1 Way main features is of Convenience of adding number of combinations
Technical Specifications:
| H.V Breakdown test | > 1.5 KV AC for 1 Minute |
| Current Rating | 10A 250 V AC |
| Contact Resistance | < 10 m Ohms |
| Insulation Resistance | > 1000m ohm |
| Ambient Temperature | -25 °C to + 80 °C |
| Housing Material | G.F. Polyamide |
| Terminals | Solder Brass |
| Terminals Finish | Nickel Plated |
| Mounting | Chassis Mounting |
| Color | Black |
