Description
Stackable Sideway is mainly used in applications like:
- PCB Mounting Stackable Terminal for use in Industrial Digital Temperature Controllers
- Digital Timers
- Digital Controllers wherever multiple connections are required for stacking convenience.

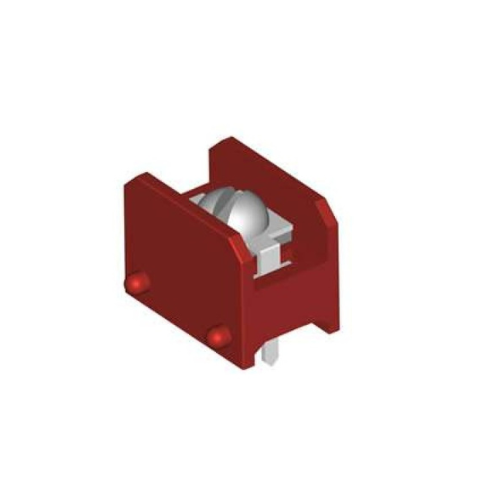

SE349 Stackable Sideway main feature is that it has pitch between two stackable connectors 9.5mm
Technical Specifications:
| Current Rating | 10 A 240 V |
| H.V Breakdown test | >1 KV AC for 1 Min. |
| Contact Resistance | < 10 m Ohms |
| Insulation Resistance | > 1000 M Ohms |
| Ambient Temperature | -25 ° C to + 70 ° C |
| Housing Material | Polyamide 6 |
| Terminals Finish | Brass |
| Terminal | Silver Plated |
| Mouting | PCB Mounting |
| Colors Available | Black/Grey |
