Description
| Sr. No. | Parameters | Specification |
|---|---|---|

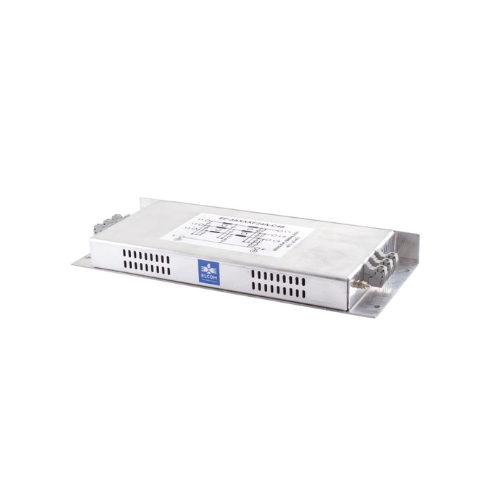

| 1 | Product category / description | EMI/RFI Filter |
| 2 | Mounting | Chassis mounting |
| 3 | Filter category | Three phase without neutral |
| Sr. No. | Parameters | Specification |
|---|---|---|
| 1 | V/A rating | 25 Amp & 40 Amp, 440VAC(P-P) 50/60Hz |
| 2 | Insulation resistance at 500 VDC for 60 sec ± 5 sec. (by shorting L & N terminals & w.r.t. earth) | Min. 300MΩ |
| 3 | H.V.break down test for 60 sec ± 5 sec. (by shorting L & N terminals & w.r.t. earth) | 2 KVAC |
| 4 | MTBF@40°c/230V(Mil-HB-217F) | 400,000 hours |
